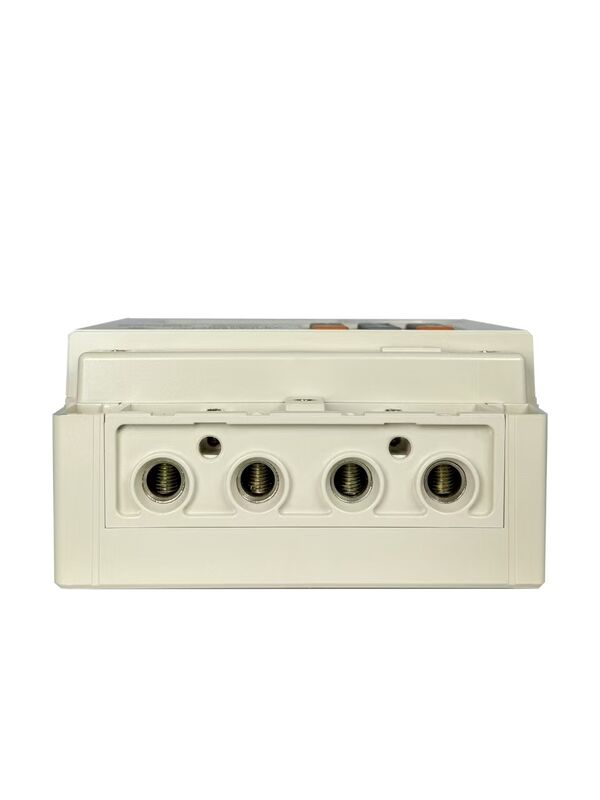

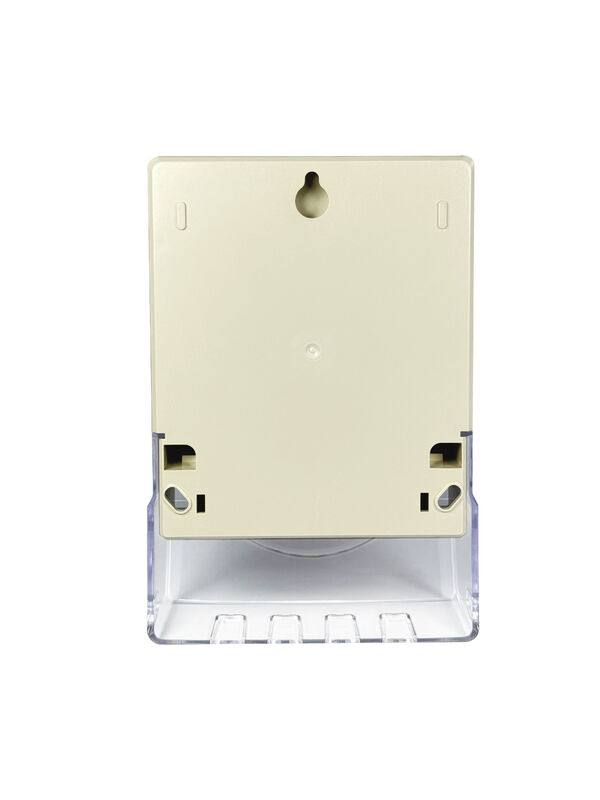

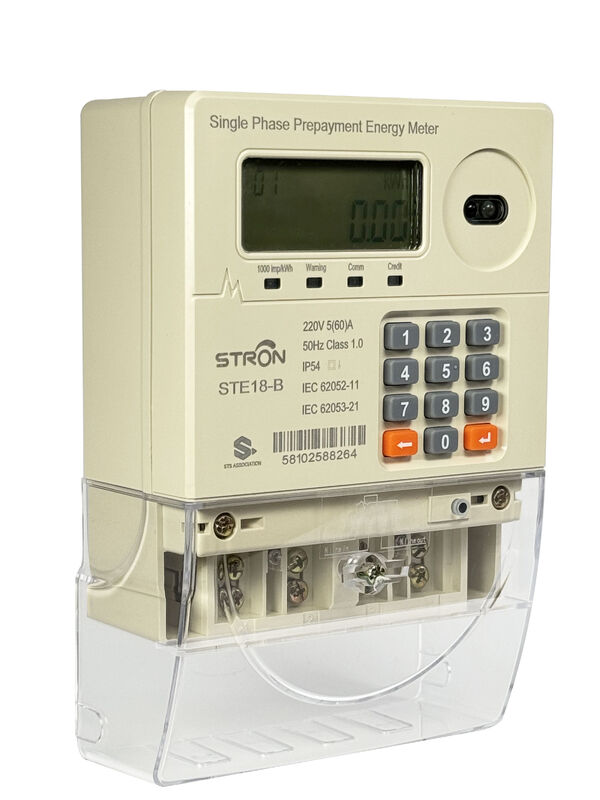

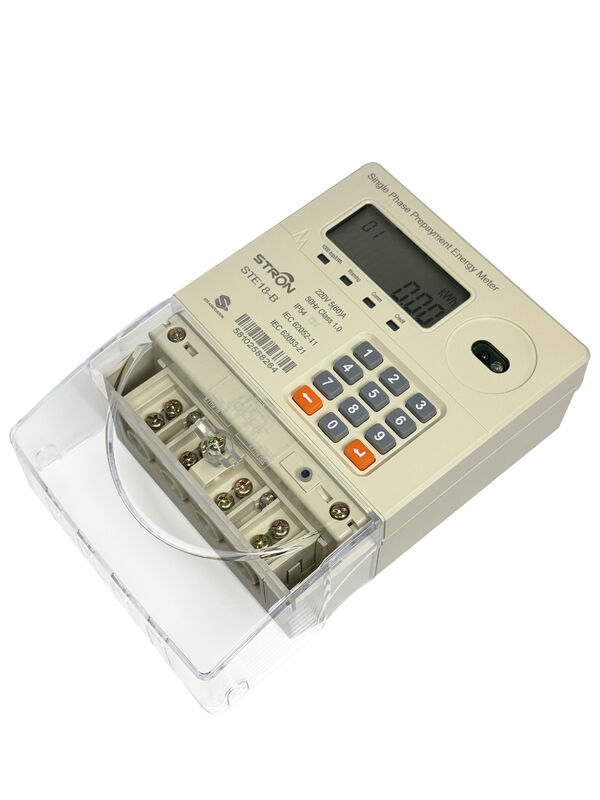

Smart Prepaid Electricity Meter with RF Remote Reading Split Meter Design and STS Standard Prepayment

Smart Prepaid Electricity Meter with RF Remote Reading Split Meter Design and STS Standard Prepayment

RF Remote Reading Smart Prepaid Electricity Meter

Split Meter Design STS Prepaid Meter

STS Standard Prepayment Single Phase Electricity Meter

Tempat asal:

Hunan, Tiongkok

Nama merek:

Stron

Sertifikasi:

STS

Nomor model:

Ste18

Hubungi Kami
Minta Kutipan
Rincian produk
Tegangan Nominal:
220V/230V
Rentang Tegangan Kerja:
30%~120%PBB
Frekuensi nominal:
50-60Hz
Saat ini:
5(60)A
Konstanta Energi Aktif:
1000imp/kWh
Kelas Akurasi:
Kelas 1.0 (Energi Aktif)
Standar:
IEC 62052-11/IEC62053-21
Peringkat IP:
IP54
Kisaran suhu operasi:
25℃-70℃
Komunikasi:
433HZ RF
Menyoroti:

RF Remote Reading Smart Prepaid Electricity Meter

,

Split Meter Design STS Prepaid Meter

,

STS Standard Prepayment Single Phase Electricity Meter

Syarat Pembayaran & Pengiriman
Kuantitas min Order
1
Harga
USD 22-USD 24 Per pc
Kemasan rincian
Karton
Waktu pengiriman
15-25 hari
Syarat-syarat pembayaran
L/C,T/T,Western Union,Paypal,Alipay
Menyediakan kemampuan
100.000 buah per bulan
Deskripsi Produk
Smart Prepayment Keypad STS Single Phase Electricity Meter with RF Remote Reading CIU
The STS Prepaid Single Phase Meter with Customer Interface Unit (CIU) delivers secure, reliable, and user-friendly energy management for residential and small commercial applications. Supporting STS standard vending, RF communication, and split architecture, this system ensures safe indoor access for consumers while protecting the meter from tampering and harsh outdoor environments.
Key Features & Specifications
STS Standard Prepayment
  • Secure 20-digit numeric token input system
  • Eliminates billing delays and revenue losses
  • Compatible with all major STS vending systems

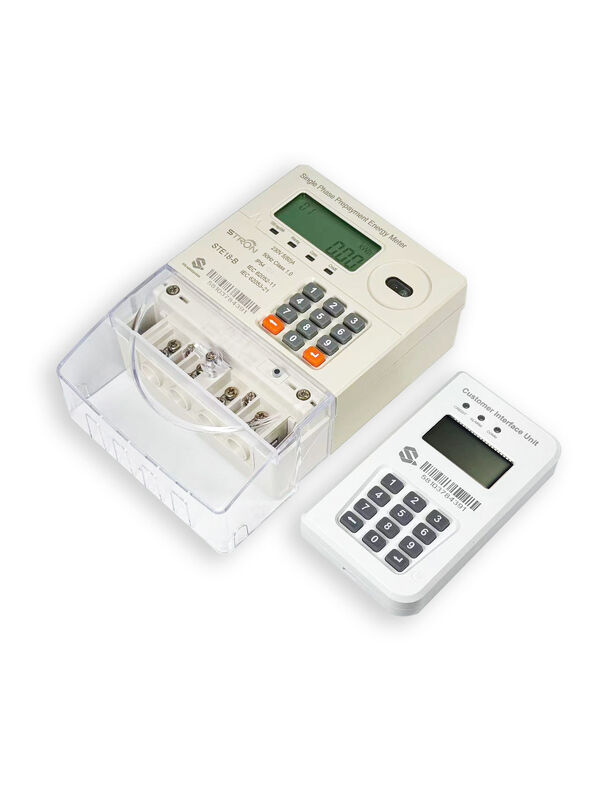

Split Meter Design (Meter + CIU)
  • CIU installed inside the consumer's home for easy access
  • Energy meter installed outside for anti-tamper protection
  • Users can check balance and enter tokens without accessing outdoor meter
  • Enhanced safety, convenience, and regulatory compliance
RF Communication Technology
  • Long-range and stable RF communication between CIU and meter
  • No wiring required between meter and CIU
  • Interference-resistant, suitable for urban and rural deployment
  • Easy installation with reduced maintenance costs
Technical Specifications
Vending Mode STS Token (20-digit)
Communication RF (CIU ↔ Meter), optional PLC/RS485 for backend
CIU Display LCD with balance, consumption, alarm indicators
CIU Input Keypad for token entry and system interaction
Advanced Anti-Tamper Functions
  • Neutral missing detection
  • Reverse energy detection
  • Magnetic field detection
  • Cover opening / terminal cover tamper monitoring
  • Meter bypass detection and reporting
User Experience Features
  • Real-time balance and consumption display via CIU
  • Low credit warning with power-off protection
  • Comprehensive event logs for tamper, token history, and credit records
  • Fast token acceptance and verification process
Installation & Deployment
Suitable for pole-mount or wall-mount installations. Ideal for utilities, property developers, and rural electrification projects. The RF-based split design significantly reduces deployment costs while maintaining system reliability.
System Benefits
Secure Revenue Protection
Through STS standard implementation
Convenient Operation
Indoor interaction via CIU
Reliable Communication
RF technology suitable for all environments
Easy Installation
No wiring required between CIU and meter
Robust Security
Comprehensive tamper detection ensures utility revenue safety
