Name: High quality STS Prepaid Gas Meter STG16-S | OIML R137 Certified, 6-Year Battery & Remote Monitoring
Brand: Hunan Stron Smart Co., Ltd
SKU: STG16-S
Price: 42.00 USD
Availability: InStock

Rumah > Produk > Meteran Gas Prabayar >

High quality STS Prepaid Gas Meter STG16-S | OIML R137 Certified, 6-Year Battery & Remote Monitoring

Tempat asal:

Cina

Nama merek:

STRON SMART

Sertifikasi:

ISO9001 and ISO14001

Nomor model:

STG16-S

Hubungi Kami

Minta Kutipan

Rincian produk

Syarat Pembayaran & Pengiriman

Kuantitas min Order

1 buah

Harga

$38-46

Kemasan rincian

Karton

Syarat-syarat pembayaran

D/A, L/C, , D/P, T/T, Western Union, MoneyGram

Menyediakan kemampuan

5000 pcs/per bulan

Produk terkait

Video

Residential/Commercial/Industrial STS Gas Meter STG16-S | Split-Type with Independent CIU 300-400m RF Comm, IP65, Tamper-Proof & Multi-Tariff

Dapatkan Harga Terbaik

Video

Nilai Maksimum yang Ditunjukkan 99999.999 Meter Gas Prabayar Termasuk 20 Jenis Token Token dan Layar LCD yang Dirancang untuk Manajemen Gas

Dapatkan Harga Terbaik

Video

STS Nilai Maksimum yang Ditunjukkan 99999.999 Meter Aliran Udara Tekanan Tinggi Meter Gas Yang Dirancang Untuk Pengukuran Gas Industri yang Tepat

Dapatkan Harga Terbaik

Video

Jaringan Meshwork Self-routing Meter gas prabayar dengan 20 token Jenis token dan rentang tekanan 0,5 bar hingga 10 bar Memastikan pemantauan penggunaan gas

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

I.Product Description

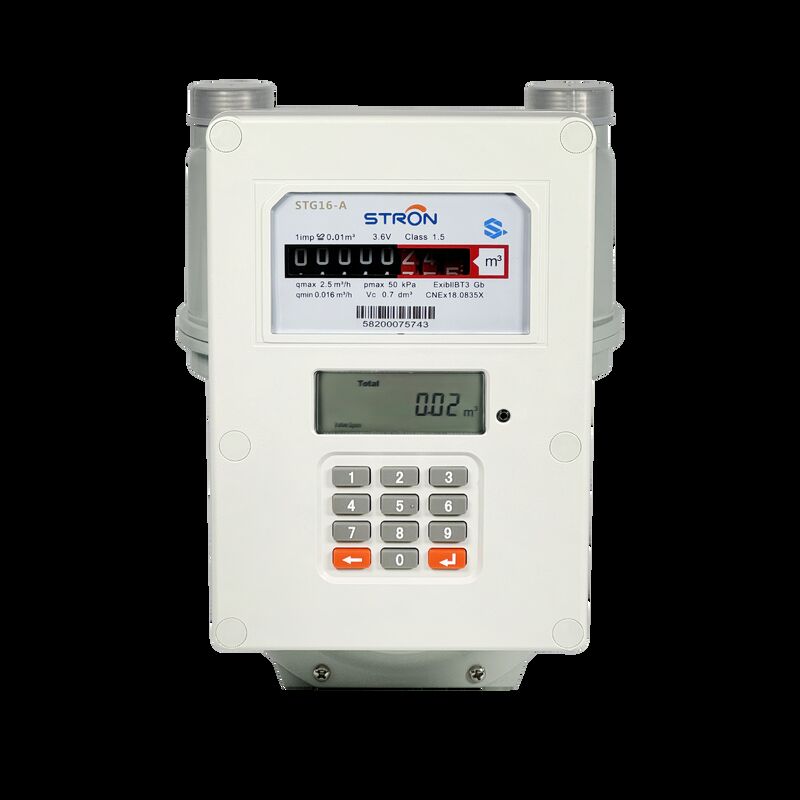

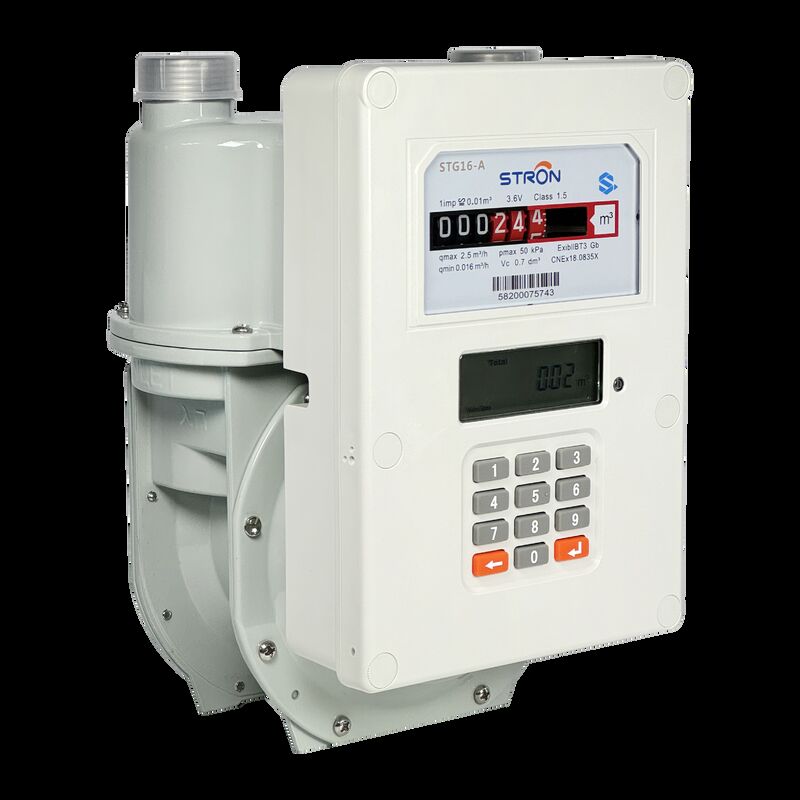

STRON STG16-S is an STS-certified split-type prepaid gas meter, featuring a combined design of a keypad-equipped metering main unit and an independent Customer Interface Unit (CIU). Leveraging LoRa RF wireless communication technology with a transmission distance of 300–400m, it enables seamless balance top-ups, real-time gas consumption queries, and instant usage monitoring. Integrated with a Data Concentrator Unit (DCU), the meter supports advanced remote management functions, allowing gas operators to remotely supervise metering data, regulate gas distribution, and execute remote on/off control without on-site operations. Equipped with high-end international metering chips, it delivers precise consumption measurement, making it an ideal solution for accurate billing in residential, commercial, and industrial scenarios. The product complies with global standards and boasts robust durability, ensuring reliable performance in diverse operating environments.

II. Core Selling Points & Features

1. Authoritative Certifications & Standard Compliance

2. Innovative Split-Type Design & Compact CIU

- STS certified (IEC 62055) and compliant with OIML R137-1&2 (Diaphragm) standards, meeting global market requirements
- Adheres to IEC 60529 for dust and water resistance, ensuring compliance with international safety norms
- Split-type structure: Separated metering main unit and independent Customer Interface Unit (CIU) for flexible installation
- CIU highlights:
  - Material: ABS; Dimensions: 6.8cm (W) × 12cm (L) × 2.9cm (H); Weight: 0.1KG
  - Dual power supply: AC power with adapter or 4pcs AA LR6 1.5V dry batteries
  - Dot matrix LCD with blue backlight, LED communication status indicator, and buzzer for alerts/indications

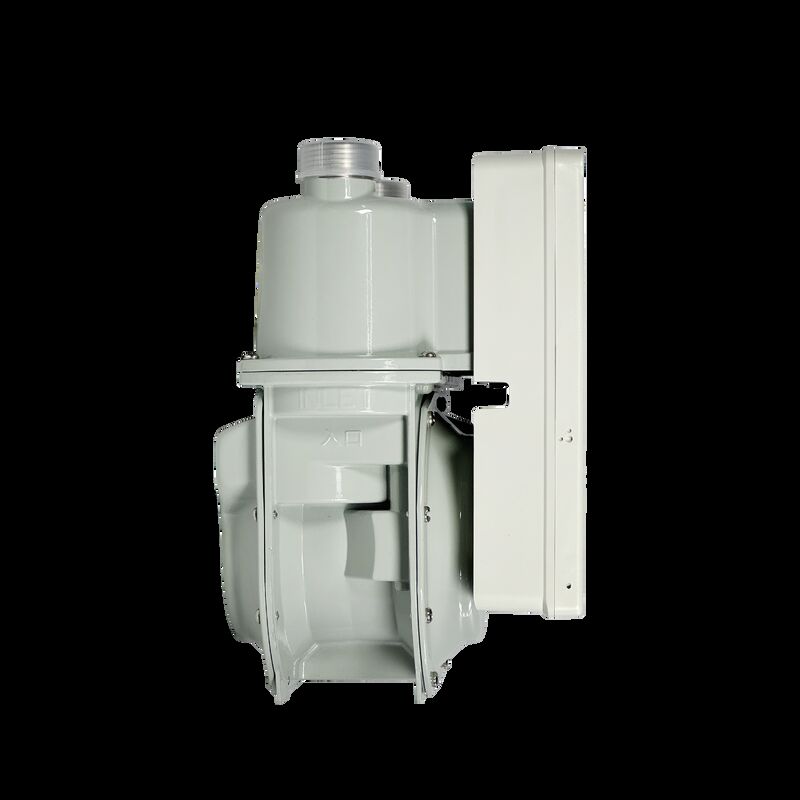

- Main unit advantages: Compact design, low-weight aluminum die-casting body, and independent battery compartment for easy replacement.
- 3. Reliable Communication & Remote Management
- LoRa RF wireless communication with a stable range of 300–400m, enabling seamless data transmission between CIU and main unit.
- DCU integration supports advanced remote functions: Remote data supervision, gas distribution regulation, and remote on/off control, eliminating on-site operations.
- Compatible with STRON AMI Solution, facilitating integrated management of smart gas, electricity, and water meters.
- 4. Comprehensive Protection & Durability
- Protection grade: IP65 (for open locations) / IP67 (dustproof and splash-proof), adapting to harsh outdoor and indoor environments.
