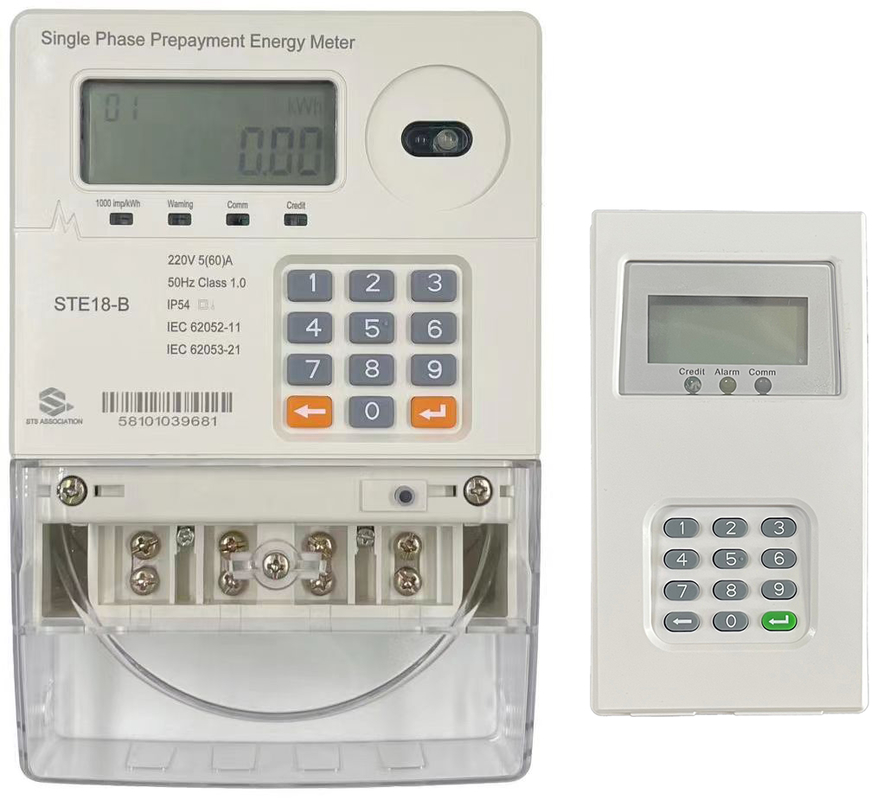

Name: STS The prepaid keypad single phase electricity meter
Brand: Hunan Stron Smart Co., Ltd
SKU: STE18-S
Price: 21.00 USD
Availability: InStock

Rumah > Produk > Meteran Listrik Prabayar Cerdas >

STS The prepaid keypad single phase electricity meter

prepaid keypad electricity meter

single phase prepaid meter

smart prepaid energy meter

Tempat asal:

Tiongkok

Nama merek:

STRON SMART

Sertifikasi:

ISO9001 and ISO14001 IEC62053-21/23 and IEC62055-31

Nomor model:

STE18-S

Hubungi Kami

Minta Kutipan

Rincian produk

Konektivitas:

Sistem Pengukuran Cerdas

Masukan:

CIU

Kisaran Tegangan Kerja:

70%-120%Un

Metode Pembayaran:

Kartu prabayar

Arus maks:

100a

Perlindungan Penembusan:

IP54

Standar:

Standar STS

Sumber Daya:

Listrik

Ukuran:

Tidak ditentukan

Isi ulang panjang token:

20 Digit

Konstan energi:

(1000IMP/kWh)/(400IMP/kWh)

Alarm Kredit Rendah:

Suhu Penyimpanan:

-20 ° C hingga 70 ° C.

Frekuensi:

50Hz

Menyoroti:

prepaid keypad electricity meter

single phase prepaid meter

smart prepaid energy meter

Syarat Pembayaran & Pengiriman

Kuantitas min Order

10-100 buah

Harga

$18-24

Kemasan rincian

karton

Waktu pengiriman

5-8 hari kerja

Syarat-syarat pembayaran

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Menyediakan kemampuan

5000 pcs per bulan

Produk terkait

Video

Class 1 Electric Meter Testing Equipment Including Prepaid Token Type Mode for and Accurate Electrical Meter Verification

Dapatkan Harga Terbaik

Video

Single Phase Electric Meter Testing Equipment Featuring Prepaid Token Type Mode for Streamlined Calibration and Assurance

Dapatkan Harga Terbaik

Video

Class 1 Accuracy Smart Prepaid Electricity Meter Single Phase Energy Metering Solution for Power Management

Dapatkan Harga Terbaik

Alat pengujian jenis prepaid token meter listrik frekuensi nominal 50-60HZ dirancang untuk memberikan pengukuran dan hasil pengujian yang tepat

Dapatkan Harga Terbaik

Hubungi Kami

Hubungi Sekarang

Deskripsi Produk

LEDindicators: “1000imp/kWh”:Pulselight,whenthemeterworksnormallyafterbeing connectedtotheload, itshowsbluelight,andevery1000flashesis1kWh. “Warning”:Alarminglight,whenthemeterinthetamperstateorthe balanceiszero, itshowsyellowlight. “Comm”:Signallight,it’sturnedonwhencommunicatewithCIUorDCU successfully.

Dimension:180.2mm×120mm×55.7mm(length×width×height) ·Installation:Suspension Installation.

Remote Communication: The single phase energy meter is STS standard smart meter, which requires users input a 20-digit Token to top up electricity, clear credit, and clear tamper. ·The single phase energy meter supports RF wireless communication, using CIU for meter reading, the distance is about 350m; using DCU for batch meter reading, the distance can reach 1000m. The tokens could be sent into meter by CIU remotely, the Admin also could login AMI system to send tokens to meter by DCU automatically.

Anti-Tamper: When the transparent protective cover is opened, the tamper switch is triggered, the valve will be closed and the "Warning" indicator will show yellow light, This function plays the role of power theft protection.

Parameter settings: There is an infrared interface on the meter, Admin could use this setting special parameters for the meter.

Credit Alarming: The "Warning" indicator flashes red light when the meter credit reaches the threshold, the "Warning" indicator shows yellow light and the“Credit”shows red light when the credit is zero.
